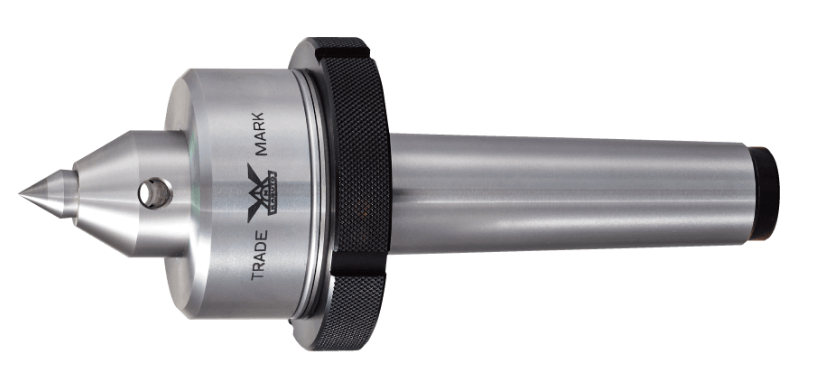

日本KABUTO 顶尖 KFN-3A

货号: KFN-3A

库存: 0

品牌: KABUTO二村

¥0.00

简介

DIMENSIONS TABLE(UNIT mm)MODEL TYPEM.T.φD1φDφdφhABCEFJLHEAD TYPEWEIGHT (g)KFN-3No.36048301636.236841.522.524156.2REPLACEMENT1,240KFN-4No.47963321640.245.5105.51.826.531.5191.2REPLACEMENT2,330KFN-5No.510585522660.5541322.33837246.5REPLACEMENT5,150

分类: 作业工具·自动化控件, KABUTO二村,

产品详情

DIMENSIONS TABLE

(UNIT mm)

MODEL TYPE	M.T.	φD1	φD	φd	φh	A	B	C	E	F	J	L	HEAD TYPE	WEIGHT (g)
KFN-3	No.3	60	48	30	16	36.2	36	84	1.5	22.5	24	156.2	REPLACEMENT	1,240
KFN-4	No.4	79	63	32	16	40.2	45.5	105.5	1.8	26.5	31.5	191.2	REPLACEMENT	2,330
KFN-5	No.5	105	85	52	26	60.5	54	132	2.3	38	37	246.5	REPLACEMENT	5,150
